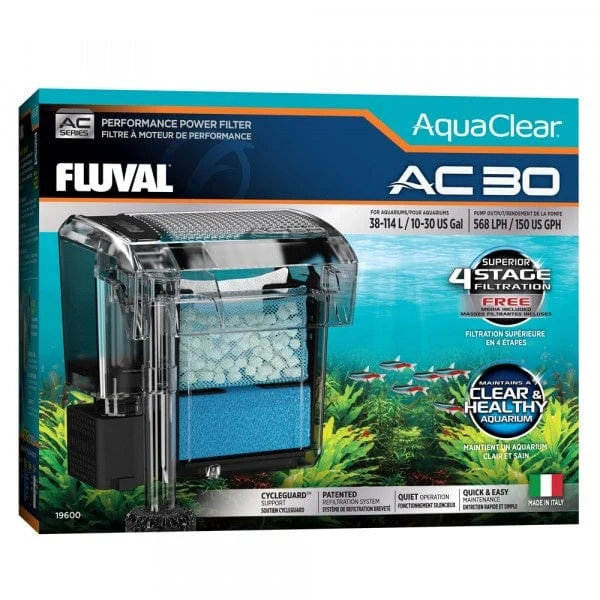

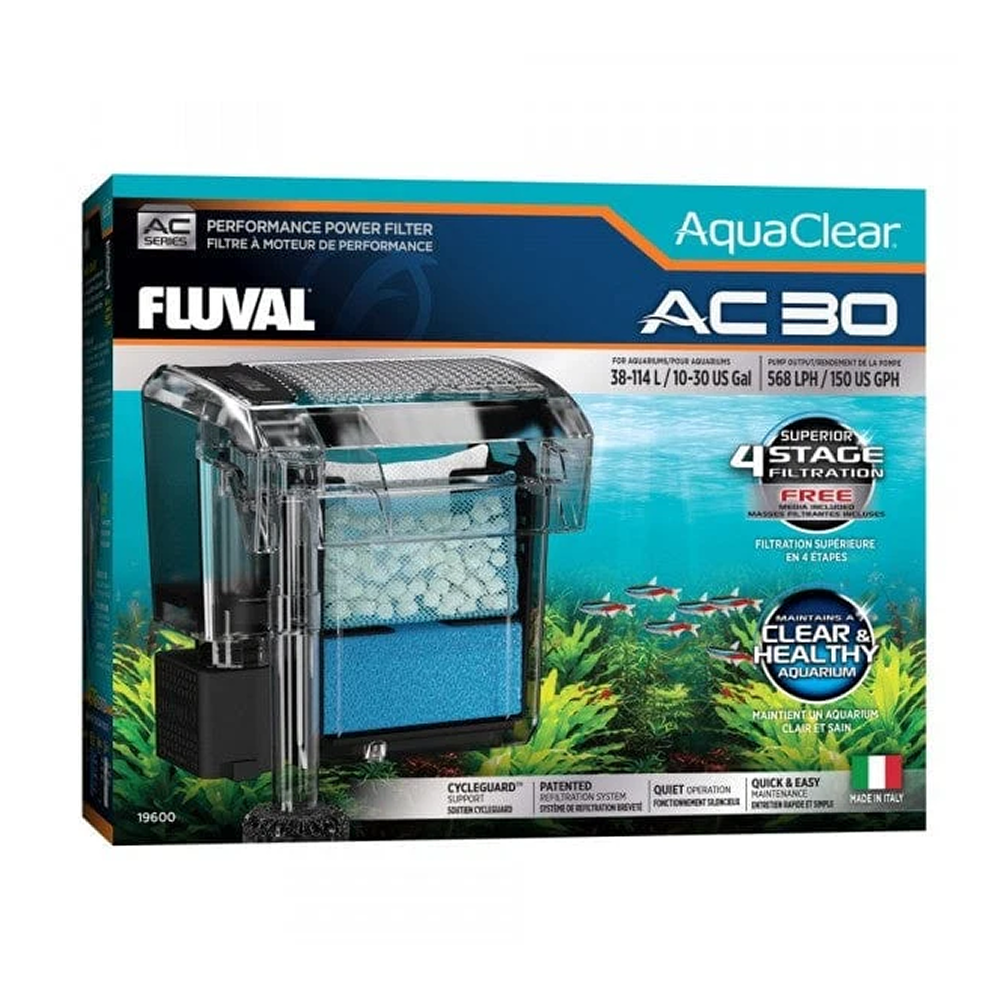

Fluval Aquaclear Hang On Filter Ac30 – 545lph

Description

Fluval AquaClear Hang-On Power Filter AC30 (545 LPH) — multi-stage filtration for aquariums up to 114 litres (30 US gallons)

The Fluval AquaClear Hang-On Filter AC30 (SKU: FAQ02) provides multi-stage filtration for aquariums up to 114 litres (30 US gallons). Delivering a flow rate of 545 litres per hour (LPH), the AC30 features AquaClear’s legendary large-capacity media basket, allowing maximum contact time between water and filter media. Its energy-efficient design ensures complete mechanical straining, chemical purification, and biological processing. It has a patented refiltration system; this unique feature permits flow rate adjustment without compromising filtration efficiency. When flow is reduced, the system will process up to 50% of the water several times within the chamber, ensuring a cleaner and healthier aquarium with exceptionally clear water.

Fluval’s AC Series power filters have become a standout choice that aquarium enthusiasts know and trust. Along with its proven multi-stage cleaning, CycleGuard beneficial bacteria support, and patented refiltration system, the latest clip-on generation sets a new standard for cleaning performance, media efficiency, whisper-quiet operation, and durability.

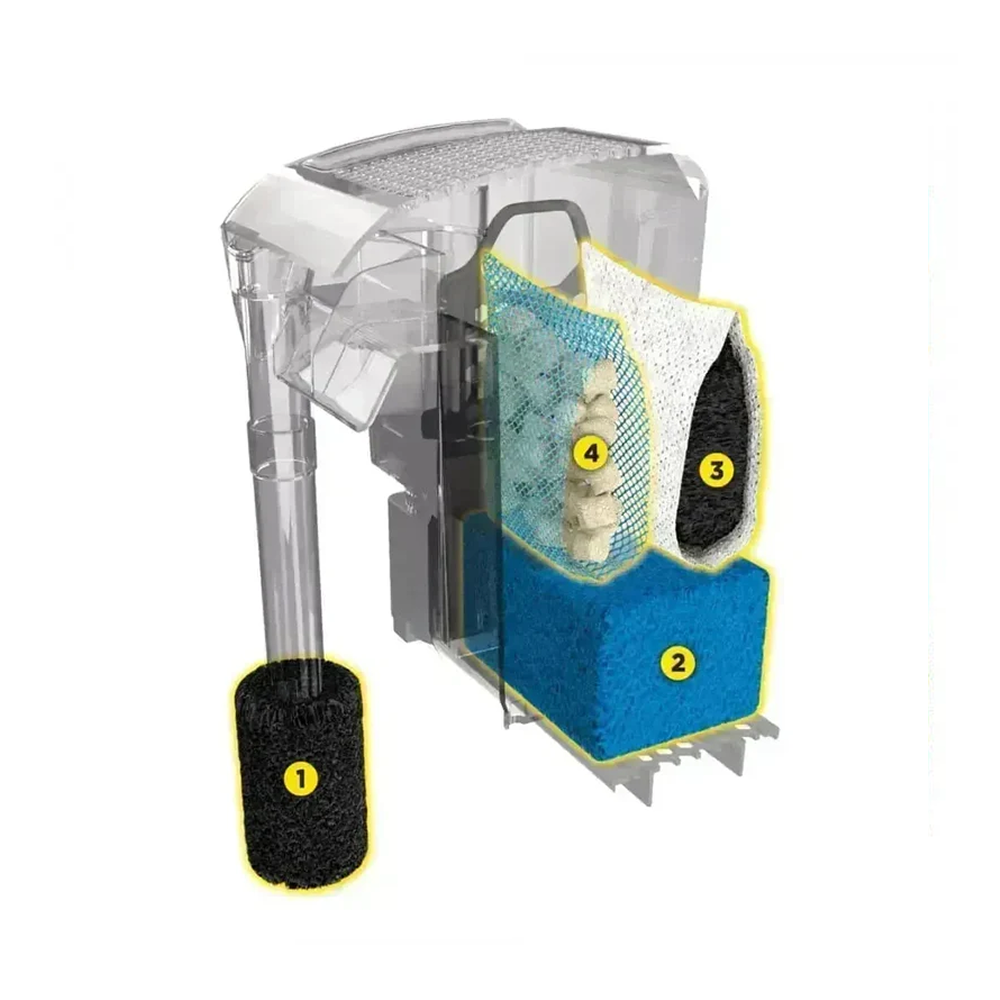

Superior Filtration: 4 Stage Filtration

A newly patented refiltration system that has calibrated water path cycles through 4 complete filtration stages to optimise cleaning performance.
– Pre-filter stage: Intake strainer sponge protects the pump from large debris and algae strands, and keeps fry and small fish safe.
– Mechanical Stage: High-density 30PPI Bio-Foam (50% more porous than before) traps finer particles and debris while supporting biological filtration (AC20/AC30/AC50/AC70 models).
– Chemical Stage: Activated carbon eliminates odours, discolourations and impurities to improve water clarity and colour. Insert is now easily replaceable from the top without having to remove the media basket.
– Biological Stage: Ultra-porous BIOMAX boosts beneficial bacteria growth and optimises aquarium health.

Usage & Application

When to Use

• Small to Medium Aquariums: Excellent for community freshwater tanks, planted aquariums, or small marine setups up to 114L.

• High Biological Needs: Ideal for aquariums requiring flexible media customisation.

How to Use

1. Position mechanical foam, carbon pouch, and BioMax rings into the internal media basket.

2. Mount the filter securely on the aquarium glass back wall using the bottom levelling feature.

3. Pour water into the filter reservoir until full to prime the pump.

4. Connect to power and adjust the top flow lever to your desired circulation rate.

Product Specifications & Highlights

Key Features

• Maximised Media Volume: Has a wide media selection; basket design accommodates significantly more filter media than standard cartridge filters.

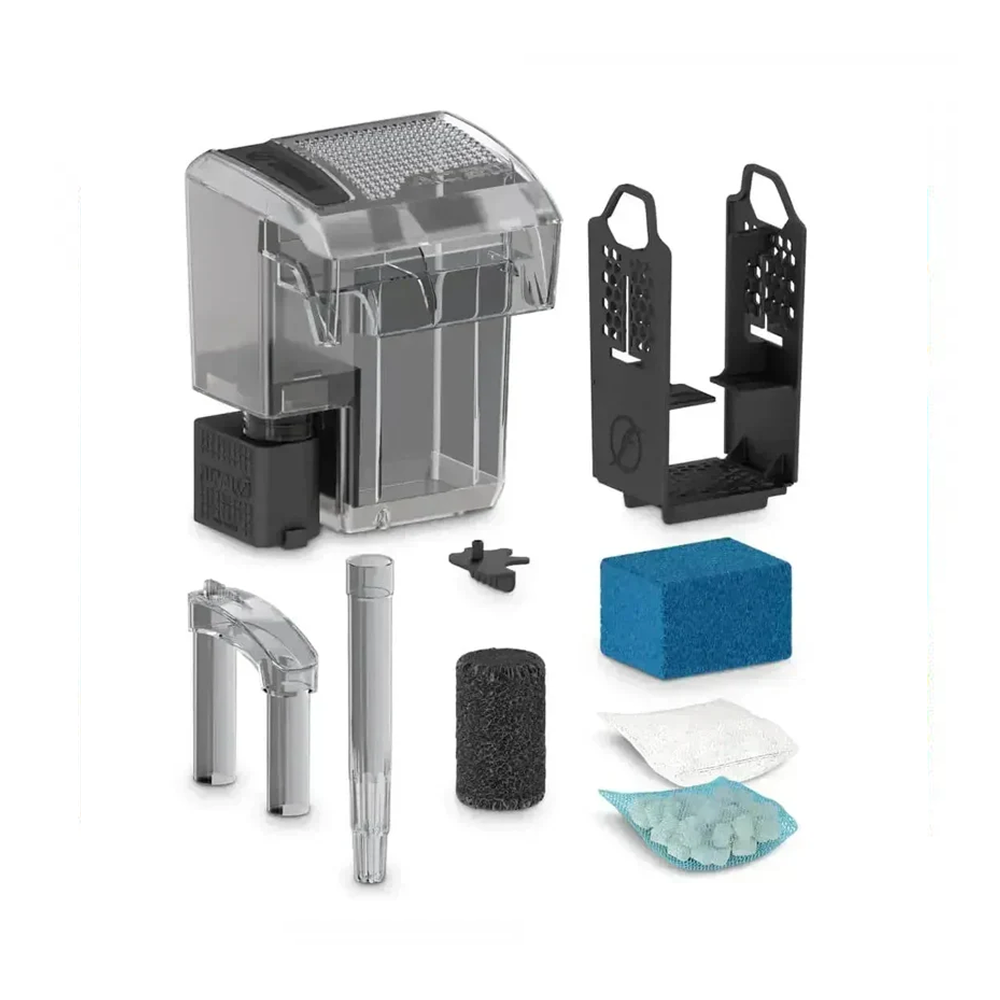

• Multi-Stage Filtration Included: Comes complete with AquaClear Foam, Activated Carbon, and BioMax rings. Mechanical Media has Intake Sponge and Bio-foam. Chemical Media has Carbon, Zeo-Carb, Ammonia Remover and Clear-Carb. Biological Media has BioMax ring.

• Quieter Operation & Adjustable Flow Control: Reduce flow speed during feeding times or for low-current species. Its precision motor design (AC20/AC30/AC50/AC70 models) smooths rotations with minimal vibration. It has a sound-dampening cover that minimises the echo chamber effect, thus operating quietly.

• Smarter Design & Waterfall Return: Prevents water spills by gently oxygenating surface water while returning purified water. Filter-To-Tank Stepped Interface (AC20/AC30/AC50/AC70 models). Self-levelling in most cases for convenient installation

• CycleGuard: CycleGuard maintains your aquarium’s biological balance and prevents nitrogen cycle disruptions. By allowing 1 of the 3 media inserts to be changed at a time, bacteria levels remain stable, supporting continuous and effective biological filtration without harmful fluctuations.

Product Details

• Brand: Fluval

• SKU: FAQ02

• Barcode (GTIN/UPC): 0015561196000

• Product Type: Filters / Hang-On-Back Power Filters

• Flow Rate Capacity: 545 litres per hour (Lph) or 150 GPH

• Package Dimensions: 210 mm (L) × 180 mm (W) × 120 mm (H)

• Gross Package Weight: 800 g

• Target Environment: Freshwater & Marine Aquariums (38 L to 114 L)
