Aqua Illumination Orbit 2 Crow Flow Pump

Description

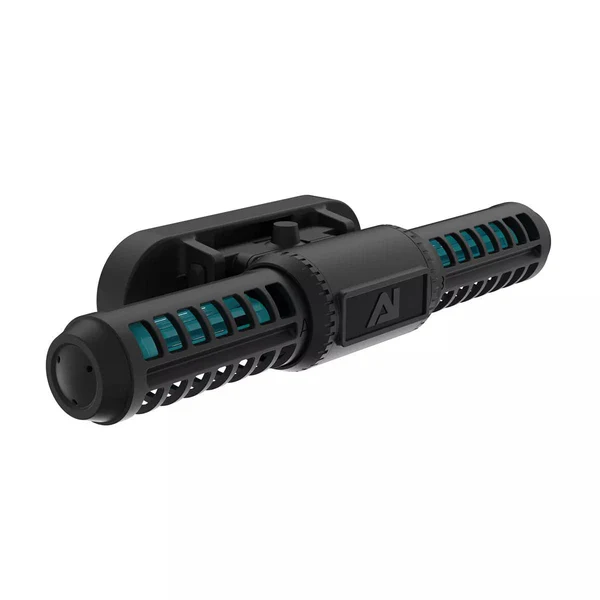

Aqua Illumination Orbit 2 Cross Flow Pump — App-Controlled Tidal Flow Pump for 75 to 330 L Reef Tanks

Reef flow is not about blasting one corner; it is about moving the whole water column so detritus never settles. Aqua Illumination Orbit 2 Cross Flow Pump (SKU: HYOR2) creates a cross-flow current that AI describes as simulating the tidal flow of an ocean reef, pushing water across the entire length of the aquarium rather than out of a single nozzle. The slim body, 223 mm wide, 71.9 mm high and 38.1 mm deep, mounts horizontally or vertically on a magnet rated for glass to 15 mm, and its quiet DC motor draws at most 25 W. AI sizes it for aquariums of about 75 to 330 L and more.

Four modes are built in, constant speed, pulse, random and reverse, and the pump runs forward or in reverse so a single unit can send flow both ways along the tank. Control comes through the myAI or Mobius app over Bluetooth, a Neptune Apex with the MXM module, or the button on the integrated driver, which steps through 1, 20, 40, 60, 80 and 100 percent plus feed mode. The box holds the pump and driver, mounting magnet, a 100 to 240 V adapter with universal plug set and a quick start guide. Retailers put flow at up to about 7,500 L/h; AI itself publishes no figure.

Usage & Application

When to Use

• Mid-sized reefs: Tanks of roughly 75 to 330 L wanting tank-length flow from one pump.
• Detritus control: Circling flow that keeps waste suspended for the filter to catch.
• Tidal simulation: Reverse and pulse modes that change direction and intensity through the day.
• Low-profile installs: A slim bar that hides against a back or end pane.

Installation & Setup Guide

• Mount: Fit the magnet through glass up to 15 mm, horizontally or vertically.
• Power: Plug the driver into the supplied adapter; choose the plug insert for the wall socket.
• Pair: Add the pump in myAI over Bluetooth, or run it from the driver button.
• Program: Choose constant, pulse, random or reverse and set a schedule with feed pauses.

Product Specifications & Highlights

Key Features

• Cross-flow current: Moves water across the full length of the tank.
• Forward and reverse: One pump, flow in both directions.
• Four flow modes: Constant speed, pulse, random and reverse.
• Smart control: myAI or Mobius app, Apex via MXM, or the driver button.
• Quiet, efficient DC motor: Variable output to a 25 W maximum.

Product Details

• Brand: Aqua Illumination
• SKU: HYOR2
• Barcode (GTIN/UPC): 704335295161
• Product Type: Lighting > Cross-Flow Pump
• Power: Variable, 25 W maximum; input 100–240 V AC, 50–60 Hz
• Dimensions: 223 mm wide × 71.9 mm high × 38.1 mm deep
• Mounting: Magnet, glass up to 15 mm, horizontal or vertical
• Aquarium Size: About 75–330 L and larger
• Modes: Constant speed, pulse, random, reverse
• Control: myAI app, Mobius app, Neptune Apex via MXM, integrated driver button
• Included: Pump with integrated driver, mounting magnet, power adapter with universal plug set, quick start guide
• Target Environment: Reef and marine aquariums
